Seal Kit - IK Backpack Sprayer

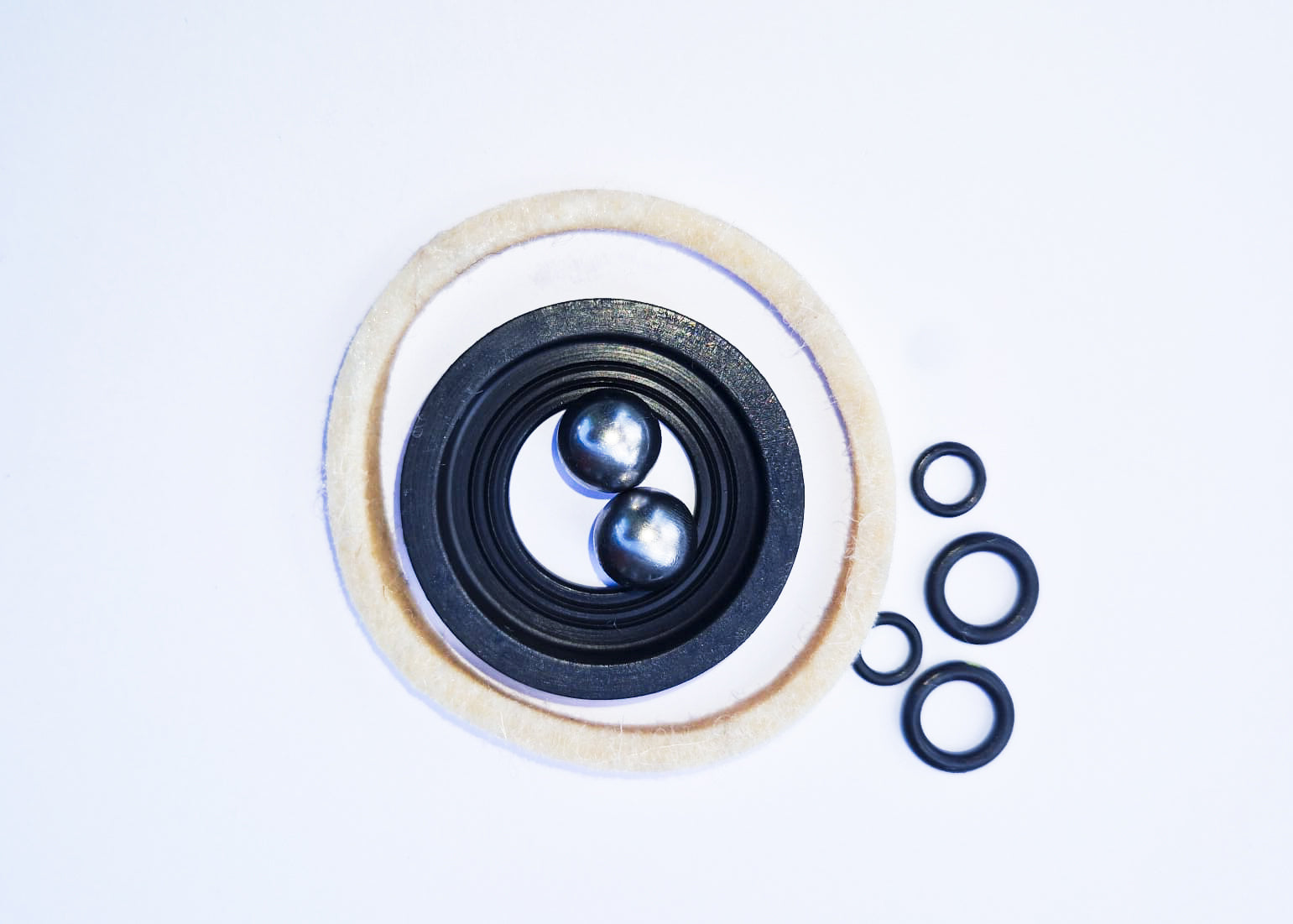

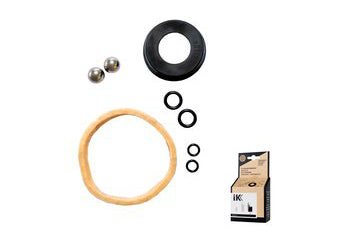

This sprayer repair kit contains 8 parts that are most commonly replaced during maintenance of your IK12 backpack sprayer; this includes two sealing O-rings that are found on the spray lance, another two rings that create the seal between the spray lance elbow and spray nozzle, two stainless steel balls that sit it the base of the sprayers compression shaft, a replacement lid gasket, and compression shaft head seal.

These IK sprayers are a quality item and should not be treated as a throw away product. We stock all of the replacement parts for this and our other IK sprayers so with a little care this sprayer can serve you for many years.

• Brand - IK sprayers
• Seal Material - Viton, felt & stainless steel
• Maximum Pressure - 3 bar
• Tank Material - plastic
• Piston Ring - included

How do I know which repair kit I need?

If you aren't sure which of the kits is designed for your sprayer then please just get in touch with us and we will point you in the right direction.

What is a piston ring?

The piston ring sits inside the compression shaft and is attached to the end of the compression rod (opposite end to the pump handle). This moves up and down inside the shaft as you pump the handle to increase or provide pressure. It therefore moves a lot and must create a complete seal within the shaft otherwise there will be a leak of air and you will find it hard to build or maintain pressure. As it moves so much it can slowly wear so may need to be replaced.

Why would ball bearings need to be changed?

It is unlikely that you will ever need to replace the bearings within your backpack sprayer but it is possible that the bearings could be damaged if the sprayer isn't looked after and is heavily used. It is important to keep the sprayer clean, allow it to dry after use, replace any damaged or worn seals, and apply grease to the moving parts. If you keep these points in mind then your sprayer will last for many years.
