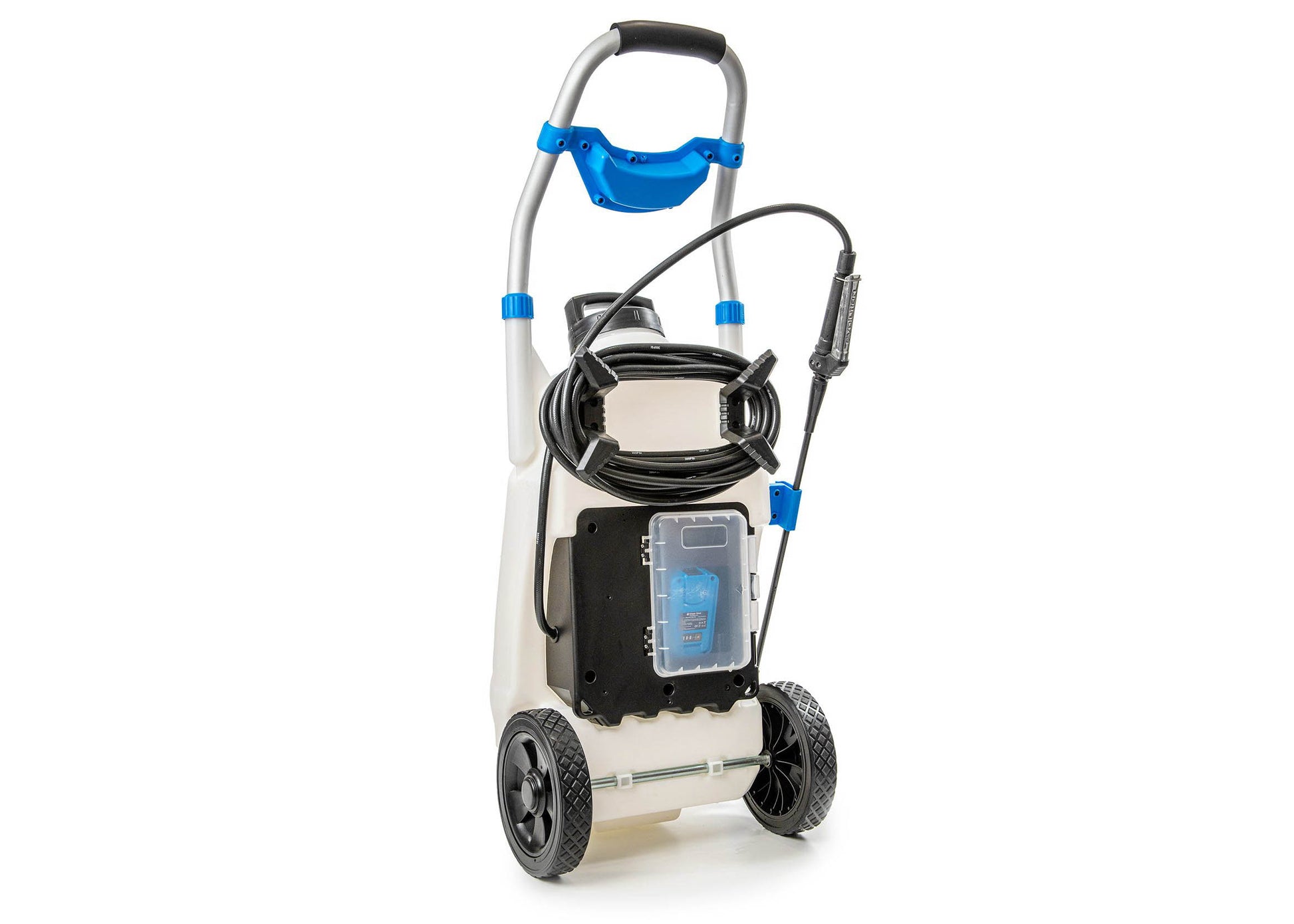

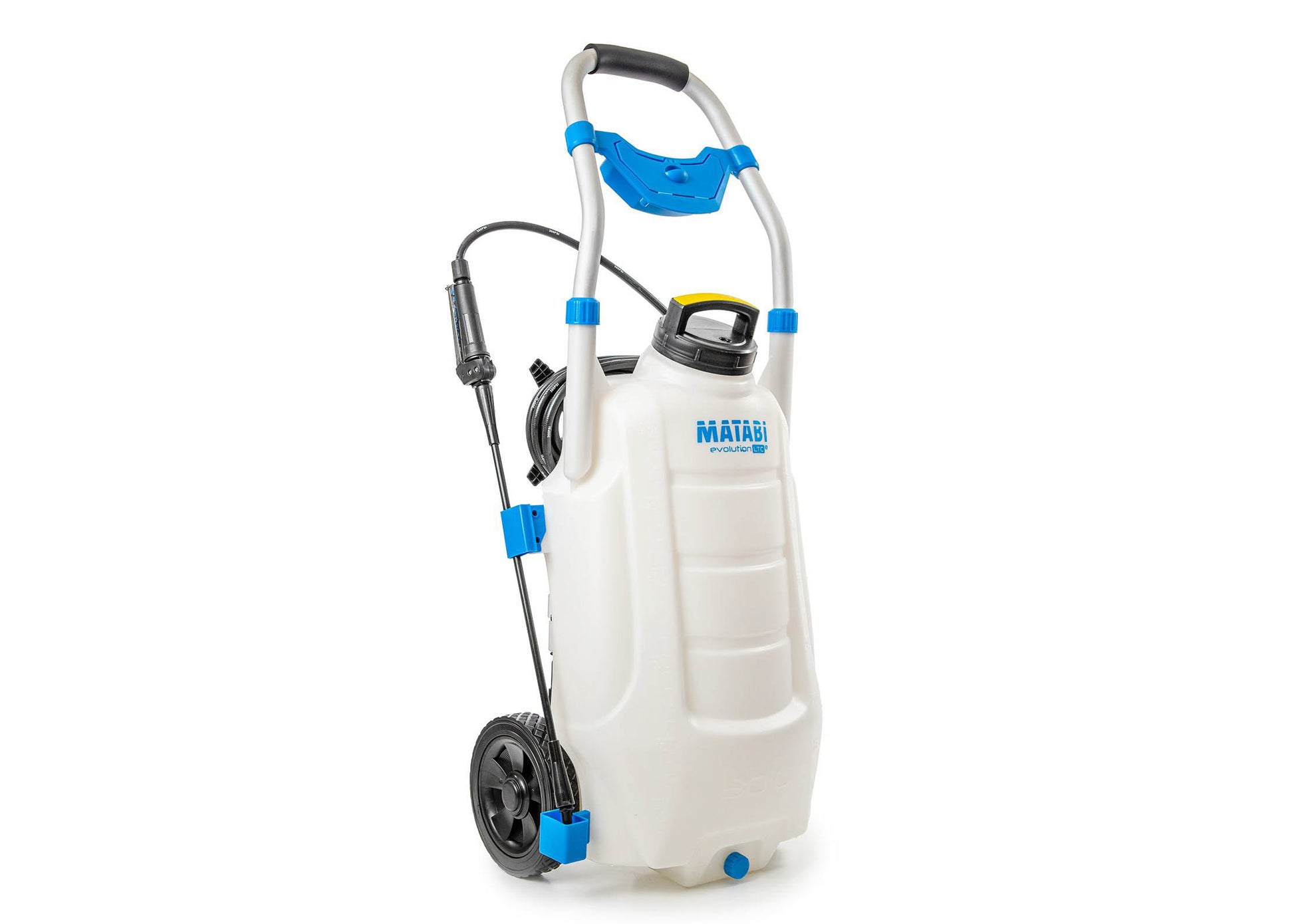

Electric Mobile Sprayer

This 30 litre capacity sprayer is ideal for both the spraying of crops, such as orchards, as well as gardens and municipal areas.  The sprayer is equipped with nozzles for typical applications including the spraying of weed killers, insecticides and fungicides as well as moss killers, liquid fertilisers.  The sprayer is very easy to use and convenient to move. It also has Electronic Control that allows for consistent spraying:

• Battery powered sprayer with a high performance membrane pump plus high flow nozzles ideal for spraying agricultural crops.
• CLTC Electronic control which ensures a constant and effortless spray application.

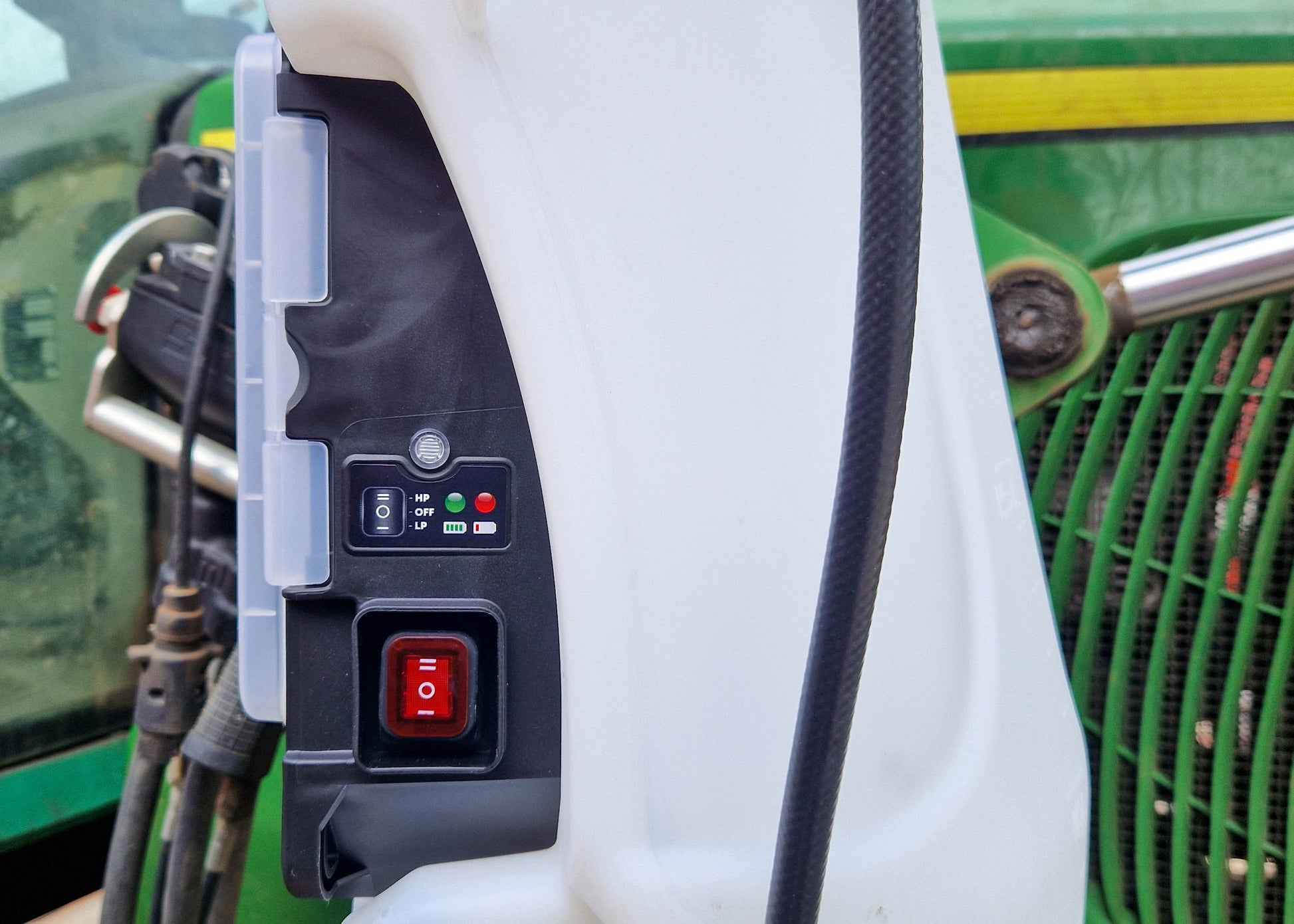

• Instant start & stop spray control.
• Two spray power positions: Insecticide/Fungicide and Herbicide.
• This sprayer includes a set of nozzles giving a range of droplet size.
• High performance sprayer with a fiberglass lance, reinforced hose and stainless steel handle.
• Drain plug at the bottom of the sprayer tank for easy liquid draining.
• Hose length of 8 metres.
• Nozzle storage box.
• Battery & charger included.

• Working capacity - 30 litres
• Unit weight - 8 kg
• Seals - Viton
• Tank material - Polypropylene
• Lance - Fibreglass
• Hose - 8 metres
• Battery - 18V Li-Ion
• Pressure - Low pressure & high pressure spray options
• Spray per charge - 100-300 litres

Pack Contents

• 30 litre tank with 8 metre hose & flow valve fitted
• 2 x wheels
• Battery & charger
• Spray lance
• Nozzle pack
• Nozzle tray
• Handle
• 2 x hose mounts
• Required fixings

Safety Tips

• Always follow the operating instructions & dosage instructions on the packaging labels that the manufacturer recommends for both the sprayer and any chemical product that you are using.
• Do not eat, drink or smoke whilst operating this sprayer, especially if using with with chemical products.
• Do not use this sprayer to spray chemical products on people, animals, electrical installations, flames, open fire, or other sources of ignition UNLESS the chemicals being used are intended for such purposes.
• In the event of chemical poisoning, you should consult your doctor or go directly to a medical facility/hospital, taking the chemical product packaging with you.
• Never dispose of waste product or cleaning residues near water courses. You should follow all manufacturers instructions for product disposal.
• If mixing/diluting a product prior to spraying then only make the amount to need to complete the spraying task.
• Use suitable protective equipment (PPE), masks, goggles, gloves, footwear, etc. when using this sprayer.
• Read the instructions for this sprayer before you use it. Do not modify the sprayer, do not obstruct or strike the safety valves (if applicable). Do not use the sprayer if it is damaged, deformed or altered from its original shape. Should the hose, tank, handle or any of its connections be damaged, do not attempt to repair but replace the items with new parts.
• The composition of the chemicals and substances to be sprayed, along with the conditions of use, such as solar radiation, temperature, pressure, etc., affect the endurance of the tank material. Ageing and storage conditions also directly impact the tank's physical properties; thus, it is impossible to accurately predict a sprayer's service life.
• It is essential to follow the cleaning and maintenance guidelines recommended by the sprayer manufacturer/supplier to ensure that your sprayer continues to work safely and effectively.
• Keep your sprayer out of reach of children.
• Only use this sprayer with substances which are compatible. If you are unsure of the chemical compatibility then consult with the supplier of the sprayer.
• Please use original spare parts and accessories. We shall not be liable for any damage caused by third-party parts.
• If the sprayer is supplied with a battery then you must follow all of the instructions for its safe use. Never use a battery that is showing signs of damage and always use batteries with care.

3125 Instruction Manual

This sprayer is designed to be used with water and water-based products such as most fungicides, insecticides and herbicides and well as surface cleaning solutions. Many types of weed killing products and pH neutral moss killings products can be used and it should only be used for the application of such products and not used with solvent-based products or anything of a high corrosive nature.

If you are unsure of the compatibility of any products with this sprayer then please contact us and we will be able to assist.

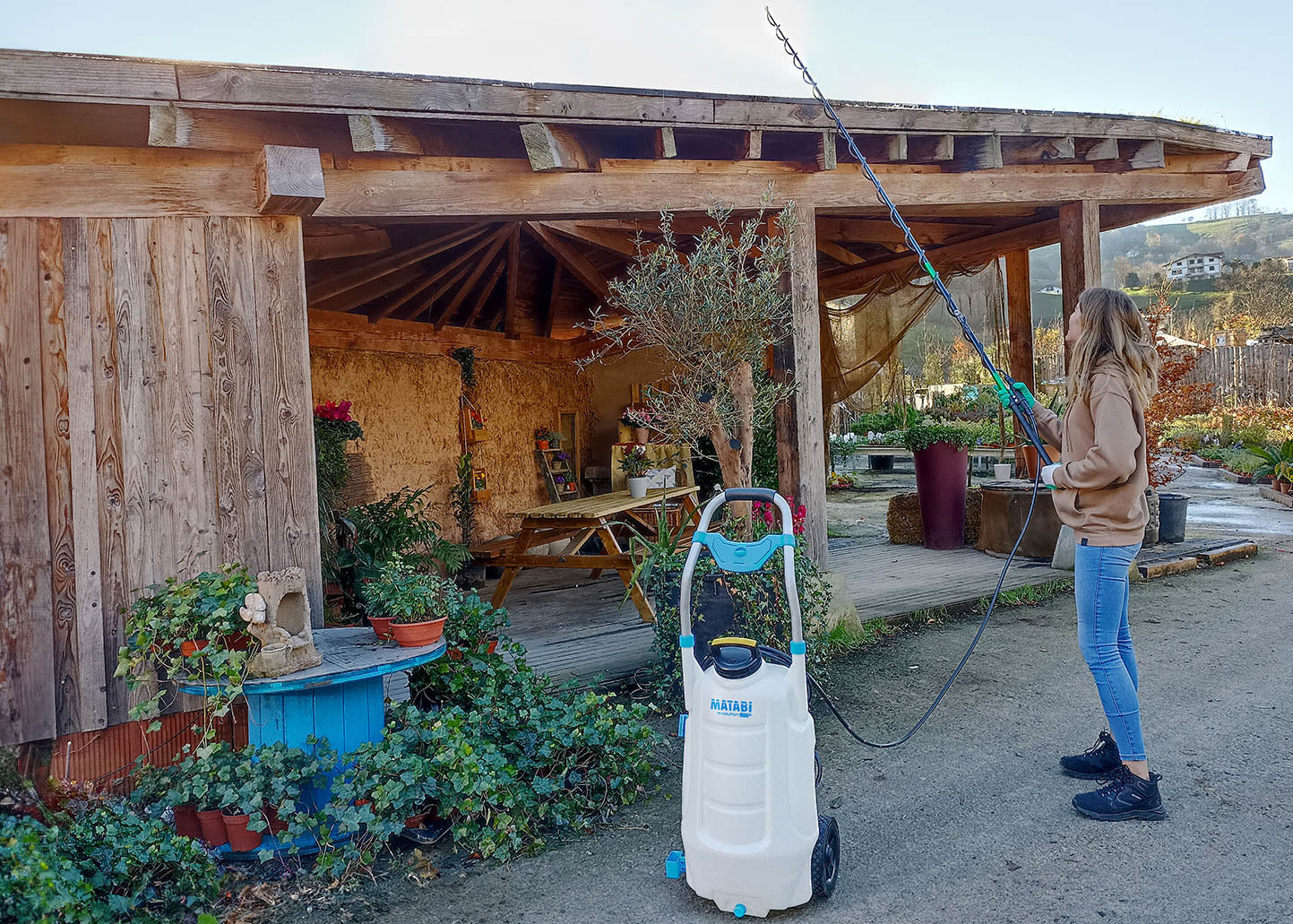

Can I use this sprayer with the telescopic lances?

Yes. This battery powered sprayer can be connected directly to our long telescopic lances including both the 5.4 metre and 3.2 metre models which makes this a very good option especially when using the lances to reach over or into hard to reach areas such as large patches of nettles or into lakes or rivers. However, when using the telescopic lance with its standard yellow nozzle the sprayer can only be used in the low pressure setting (1).

What is the difference between 3bar & 6bar working pressure?

The amount of bar basically means the amount of pressure that is pushing the liquid along the hose and lance and out of the nozzle. Generally speaking, the higher the working pressure then the harder the liquid will leave the nozzle.

How long does this sprayer take to charge?

If you have allowed the battery to run completely out of power then a full charge could take around 90 minutes but, generally, a standard recharge is normally around 30-60 minutes. Please remember that we do sell the batteries separately so you can have an extra one to ensure that you always have a charged battery ready.

How long does it take to assemble this sprayer?

There is some assembly required with this sprayer but it isn't difficult and full instructions are given in the enclosed booklet. It really shouldn't take any more than 10 minutes to assemble as you only need to attach a few parts. You will need a screwdriver and a pair of pliers which aren't included. To help, we have put together a short video showing us assembling the sprayer.

How long does the battery last?

We can't give an exact number of minutes that a charge will last whilst spraying as there are too many variables including both weather temperature and the pressure that you are spraying. However, you should be able to spray between 100-300 litres (3-10 tanks) on a fully charged battery. If you regularly spray more than this then we do sell the batteries separately so you can have more than one which would allow you to change batteries when the first runs out of charge.

Is a battery & charger included with the sprayer?

Yes, the sprayer is supplied complete with both a battery and a charger so you don't need to purchase any other items in order to start spraying. Many customers like to have a backup battery especially if they spray for longer periods of time or work away from a charging point. We do sell the batteries separately should you wish to have your own backup power supply.

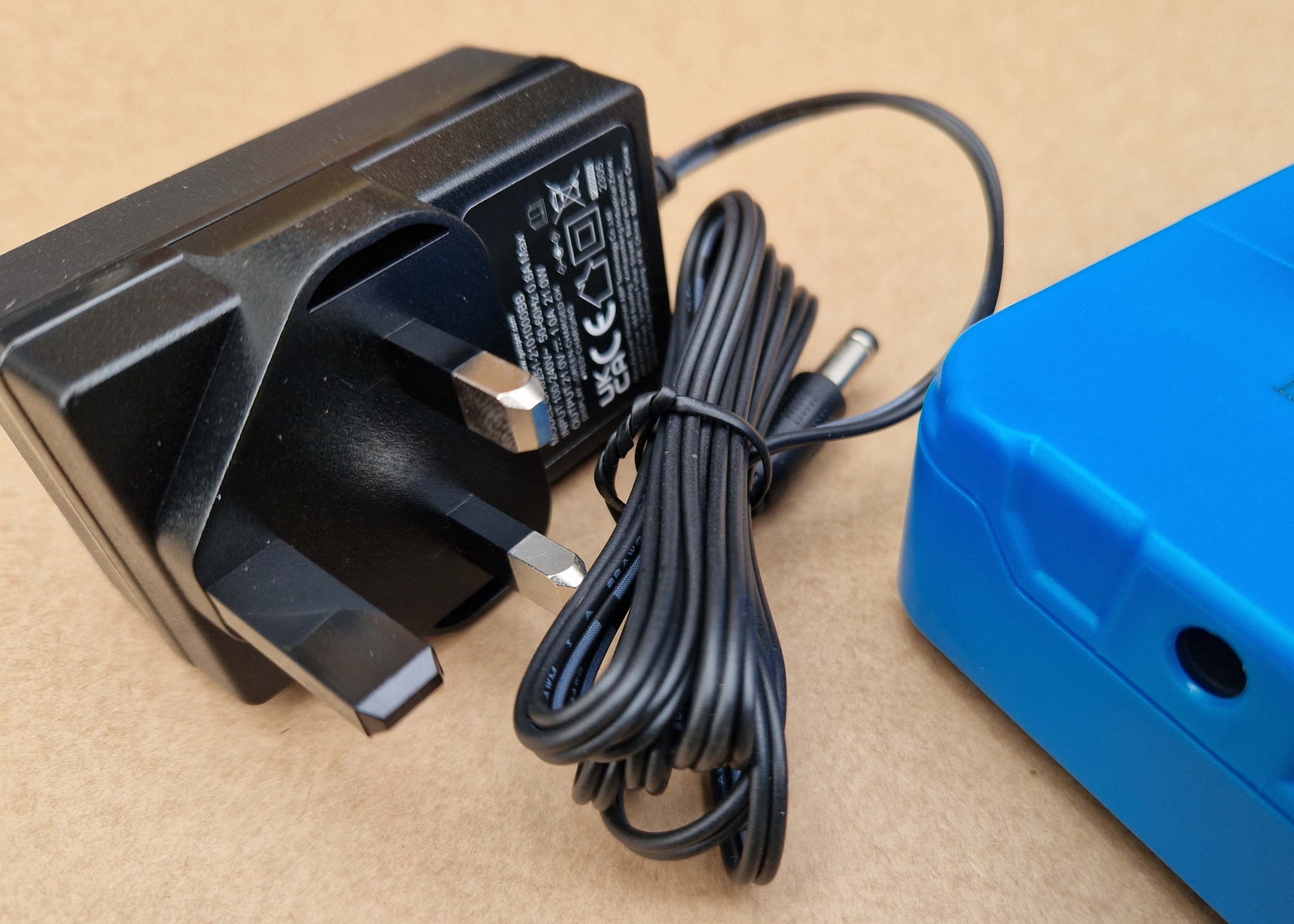

How do I charge the battery?

You simply plug the charger into a charging point then plug the attached cable directly into the battery connection. There is a charging level indicator on the battery to show the power level and when the battery is charging.

What nozzles can I use with this sprayer?

This sprayer will operate with all of the nozzles with which it is supplied. It can also be used with other nozzles made by Goizper, however there may be some restrictions depending upon the size of the nozzle and the pressure at which you wish to spray. For example, the standard nozzle supplied with our long telescopic lances can only be used in the low pressure setting of this sprayer. The nozzle gives too fine a spray for the sprayer to operate in the second (high pressure) setting.

The nozzles are supplied with all relevant technical details so you will be able to easily know which nozzles can be used at which pressure.
