Control Stainless

This is a budget version of the Doyen models so it still has the stainless steel tank and 6 bar maximum working pressure but had a slightly shorter hose although it is still oil resistant and cold flexible. This sprayer reverts back to the standard single filling point so the compression pump does have to be removed before filling or emptying the tank. However the 4 litre capacity does make for a very compact and handy little sprayer which is very useful when trying to access small spaces or when using from a ladder.

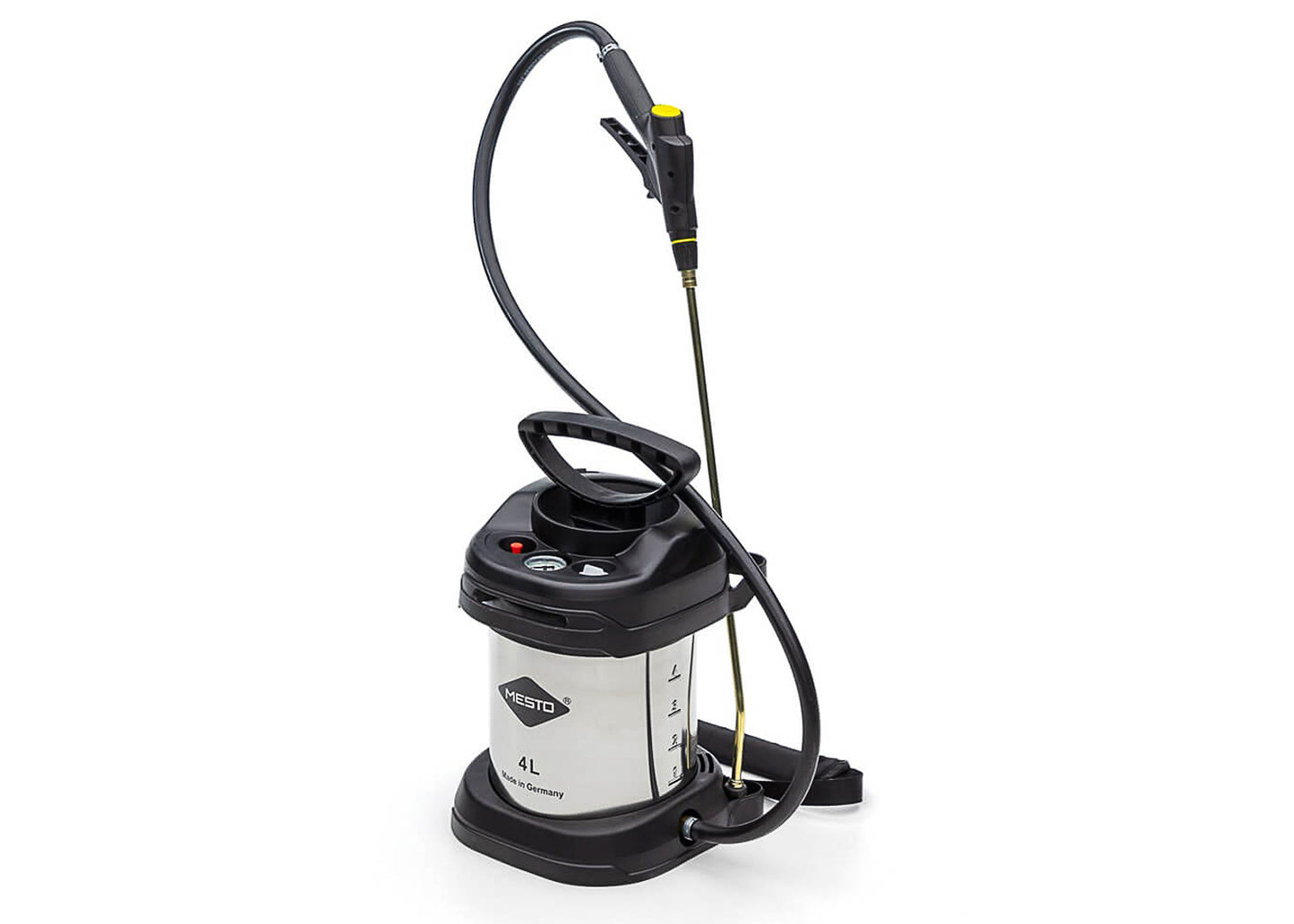

4 litre -

• Tank capacity - 6 litres
• Tank working capacity - 4 litres
• Tank Ullage - 2 litres
• Maximum working pressure - 6 bar
• Unit weight - 2.6 kg
• pH - 5-9*
• Pressure Gauge - fitted to tank
• Lance - 50cm brass
• Tank construction - stainless steel
• Carried by a shoulder strap or hand
• Hose - 1.2 metres, oil resistant & cold flexible
• Pump - brass, 38mm with steel piston rod, two handed handle
• Compressor compatible
• Seals - FPM - Synthetic rubber with high elasticity properties which makes it a very good product for the protection of seals and O-rings. FPM seals are are highly resistant to hydrocarbons, oils, strong acids, aromatic and chlorinated solvents and has a high temperature resistance.
• 20 years spare part guarantee

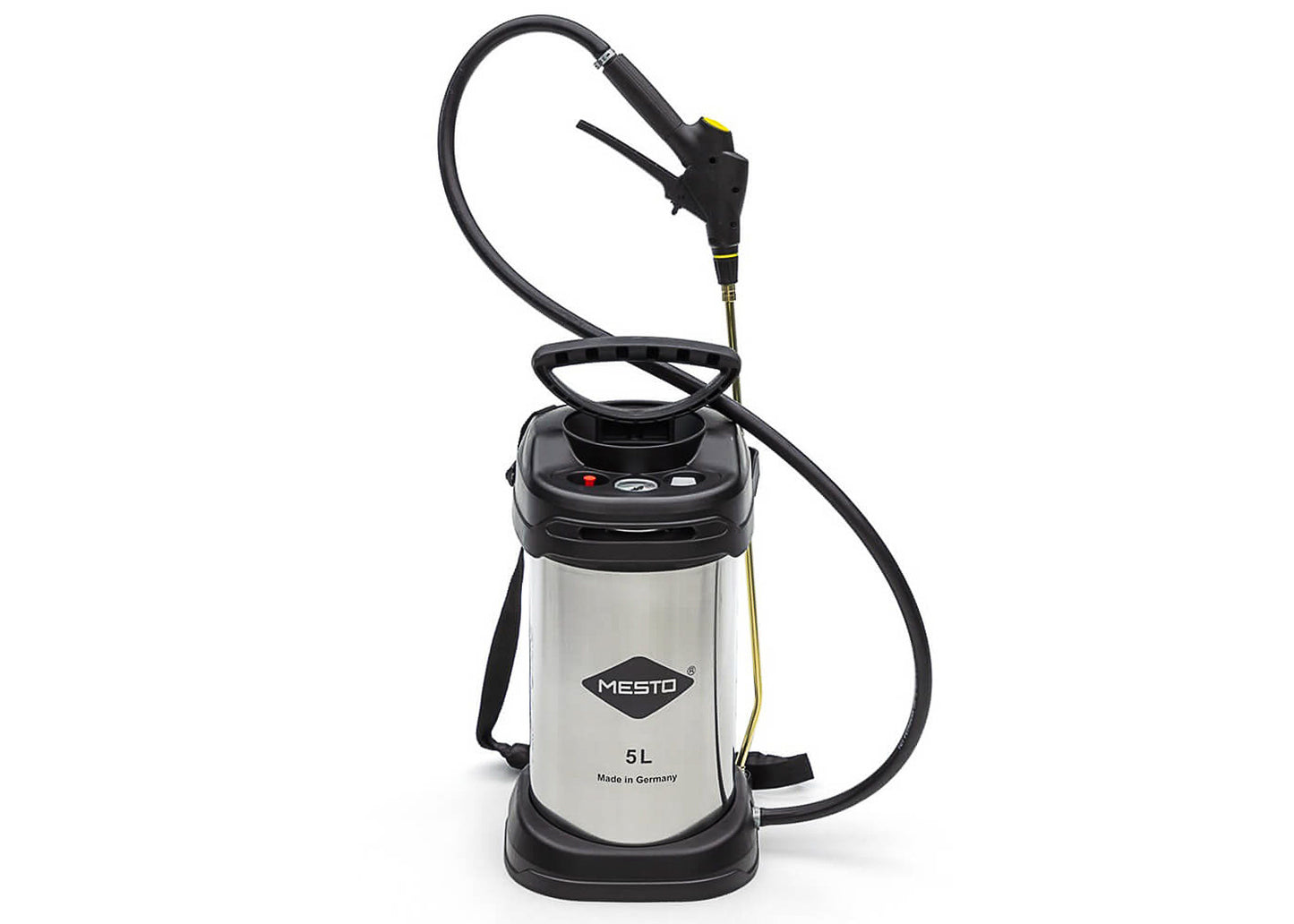

5 litre -

• Tank capacity - 9 litres
• Tank working capacity - 5 litres
• Tank Ullage - 4 litres (44% of tank volume)
• Maximum working pressure - 6 bar
• Unit weight - 4.2 kg
• pH - 5-9*
• Pressure Gauge - fitted to tank
• Lance - 50cm brass
• Tank construction - stainless steel
• Carried by a shoulder strap or hand
• Hose - 1.2 metres, oil resistant & cold flexible
• Pump - brass, 38mm with steel piston rod, two handed handle
• Compressor compatible
• Seals - FPM - Synthetic rubber with high elasticity properties which makes it a very good product for the protection of seals and O-rings. FPM seals are are highly resistant to hydrocarbons, oils, strong acids, aromatic and chlorinated solvents and has a high temperature resistance.
• 20 years spare part guarantee


*We recommend a full compatibility test with aggressive chemical solutions. If you are unsure about a product that you plan to use then send us the safety data sheet (MSDS) for the product and we will check compatibility and recommend an alternative sprayer if necessary.

1966 1967 Technical Information

Control Booklet (pdf)

What is the difference between this sprayer and the Doyen?

Whilst both this and the Doyen models have been designed with with the same type of work in mind this sprayer is a more budget model. Obviously this one has a 4 and 5 litre capacity but other than that it has standard nozzles a shorter hose and has the single filling point which, again, is the standard compression sprayer design rather than the unique separate filling point that the Doyen enjoys.
